Pneumatically Operated Automatic Centralised Lubrication Systems
Jaguar Pump
The pump is mounted on a grease reservoir along with air FRL unit, vent valve assembly and follower plate. This pump is available to suite reservoir capacity of 27 , 50 and 180kg. All hoses required for the pump station assembly include vent line hose and grease refill hose. Level indicator rod is provided for monitoring the grease level in the reservoir.
Technical Specifications :
| PUMP OPERATING RATIO |
60:1 |
| AIR CONSUMPTION |
15.9 cfm |
| MAX. GREASE OUTPUT PRESSURE |
600 bar |
| AIR MOTOR DIAMETER |
3.15 in. |
| AIR MOTOR STROKE |
3.15 in. |
| MAX. FLOW RATE |
2000 gms/min |
| AIR INLET |
3/8” bsp |
| LUBRICANT OUTLET |
3/8” bsp |
| WETTED PARTS |
Steel, CI, NBR,PTFE |

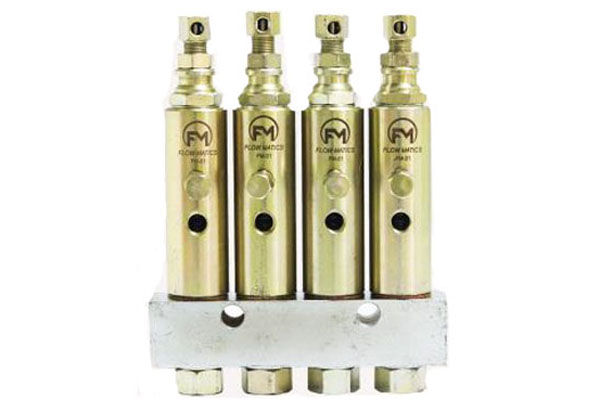

Injectors
FM-01
| MIN. OPERATING PRESSURE |
128 bar |
| MAX. OPERATING PRESSURE |
241 bar |
| OUTPUT VOLUME/ CYCLE |
0.131 cc. - 1.31 cc. |
| RESET PRESSURE/ VENT PRESSURE |
41 bar |
Vent Valve Assembly :
Vents/ relieves the inbuilt system pressure back into the grease reservoir.
Lubrication Controller (LC-02):
Features:-
- Compact timer mounts easily in operator’s cabin
- Simple timing set up
- Dual monitoring function: PSI / Timer mode
- Display indicates pump on, pause time, alarm (fault indicators) error code
- 24 VDC power voltage
- Indicator lights for alarm, power on, pump mode, timer mode
Pressure Switch :
Pressure Setting: 75-175 bar
Tubing and Fittings :
All Fittings are carbon steel compression type, which are as per DIN Standards 2353
Hoses :
Hoses considered are high pressure - reputed make for main line and feed Lines
- Lube Controller is multi- functional and dynamically interacts with solenoid valve & pressure switch
- Pneumatic Vent Valve Vents/ relieves the inbuilt system pressure back into the reservoir
- Follower Plate force feeds grease to the inlet of the pump and uses a rubber wiper ring sealing the grease underneath the plate
- FM-1 Injectors seal life lasts longer ensuring efficient performance.Pressure Switch has reliable sealed piston design for long life and can sense grease pressure up to 3,200 psi
- Level Indicator assembly incorporated with a limit switch works in conjunction to provide auto indication of the lubricant level in the reservoir
